Turmeric Processing Plant

• Pre-Polished Turmeric Finger & Bulbs from farm produce are directly fed into the vibratory feeder, lifted by Z-type bucket elevator, and fed to Grader to remove impurities such as stones, mud balls of specific Size based on screen. Also removes the lighter impurities like jute threads through aspiration channel and collected separately in the pulse jet type bag filter. This ensures dust free hygienic operation. Cleaned whole Turmeric can be collected as a product or proceed for grinding.

Turmeric grinding with a capacity of more than 300 kg/hr is grounded in 2 stages:

• Stage 1, cleaned turmeric are grinded / crush into kibbles in the Universal Impact mill, collected in the hopper at the bottom of mill and fed to the 2 nd stage grinding.
• These kibbles of 2 to 3 mm size either taken to the curcumin extraction process or further grinding for fine powder.

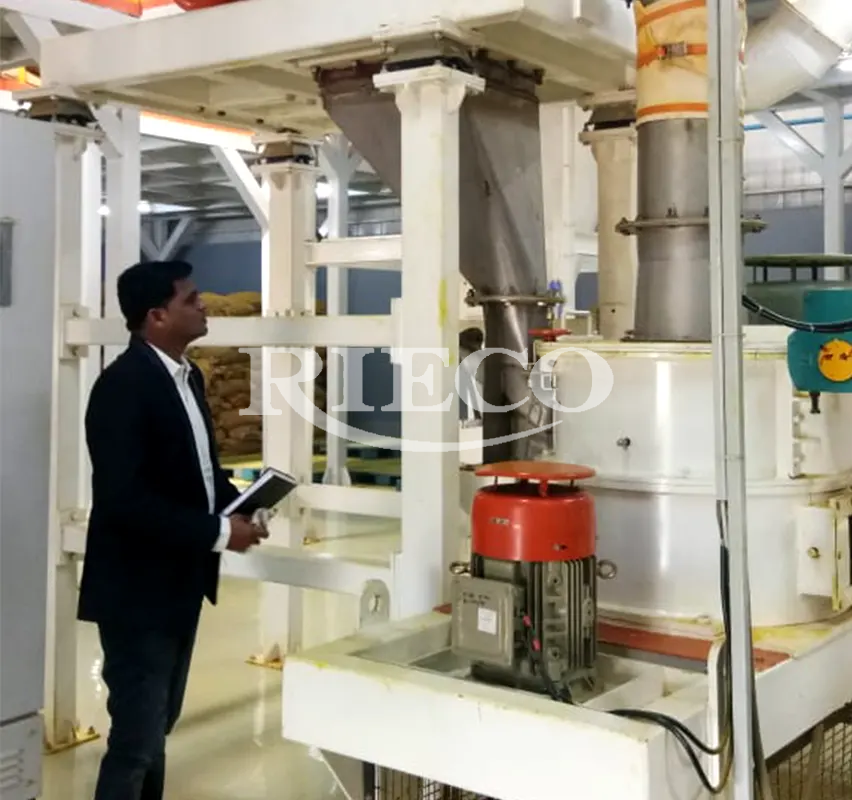

• Stage 2, Kibbles are grounded to desired fine powder in the Air classifying mill, which is screen less machine and in which fineness is controlled through dynamic classifier. Also, during grinding ACM takes large volume of air which helps to keep the product temperature on the lower side.

Ribbon Blenders with load cells assure accuracy and help to obtain the perfect homogenized turmeric powder blend. Optional arrangement for Oleoresin / oil spraying is provided. After check sifting, and passing through All metal detector, spices are screw conveyed for packing.

Aspiration & Dedusting system ensures clean, odour free and suitable working environment.

Automation and control have gained impetus in Spice processing, PLC SCADA system to monitor for round the clock monitoring of the plant. The monitoring dashboard can be enabled not only on internal control panels but can be accessed remotely through your mobile. This also supports vendors with modification options.
