Micronex ® 4U

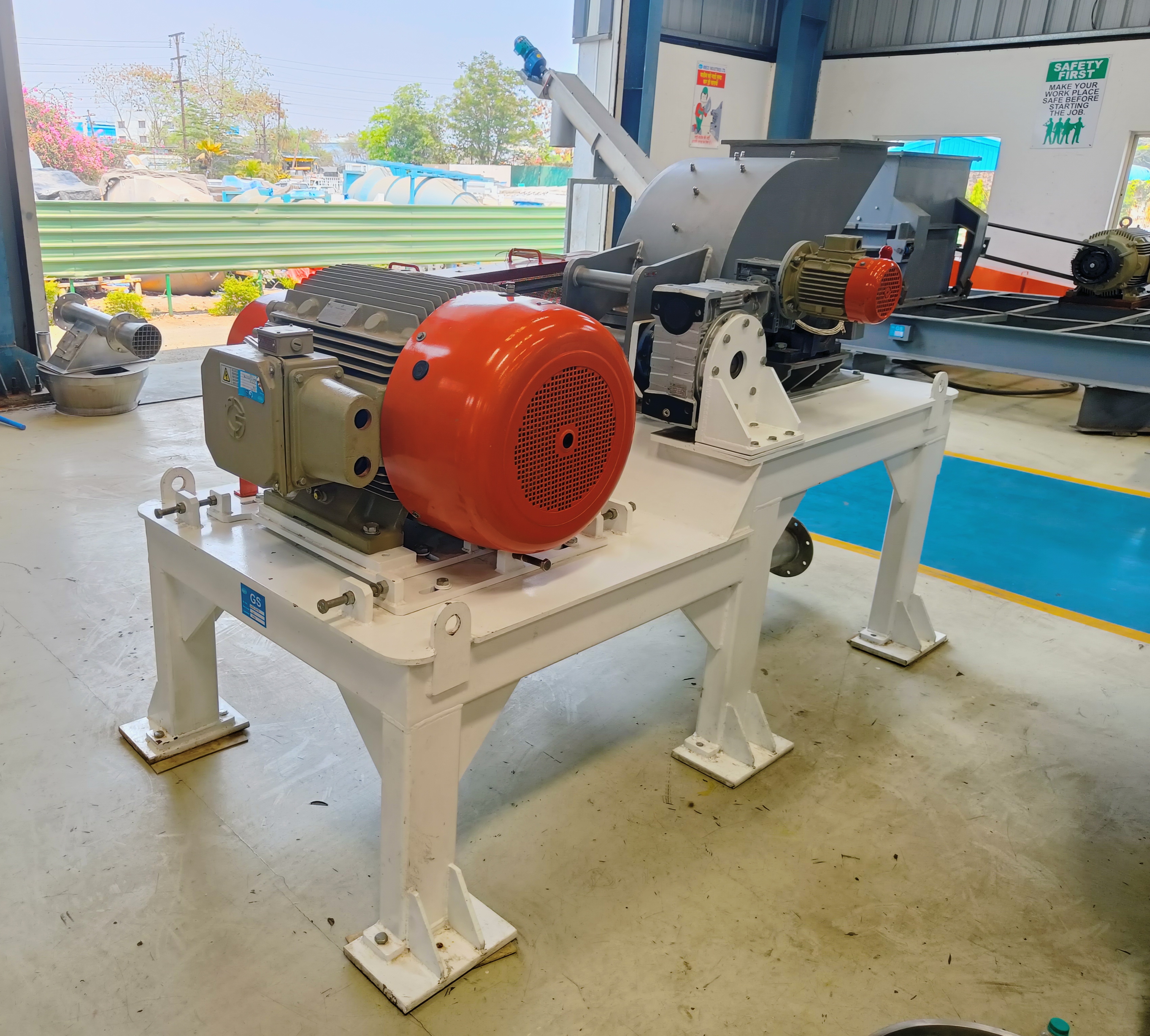

Micronex ® 4U – The Next-Gen Grinding Mill for Food and Chemical Applications

High on performance. Low on maintenance. Built for durability.

RIECO’s Micronex ® 4U is the upgraded model of our trusted Micronex ® 4W mill, re-engineered to deliver superior grinding performance with reduced operational costs. Specially designed for hygienic food processing and mild chemical applications, Micronex ® 4U combines rugged construction with easy maintenance and unmatched efficiency.

Why Upgrade to Micronex ® 4U?

MICRONEX 4U offers a host of upgrades over the conventional 4W model:

Optimised Bolted Rotor Design: Lower power consumption, improved strength, and easier servicing
Reduced Machine Weight: Ergonomic design for easier handling and maintenance
Improved Aesthetics & Ergonomics: Modernised for today’s processing environments
Quick-Clean Design: Tool-free screen removal and wide door opening for fast cleaning and maintenance

Technical Specifications -

Parameter	Specification
Rotor Speed	Max. 3500 RPM
Mill Capacity	Up to 1000 kg/hr (30 Mesh)
Tip Speed	Max. 110 m/sec
Motor Power	60–100 HP
Air Flow	3400 m³/hr
Feed Type	Gravity
Rotor	Optimised bolted rotor design
Hardness Processed	Less than 3 Mohs

Key Features

Customisable screens and hammer patterns to suit a wide range of spices and soft chemical applications
Balanced HP-to-screen ratio for optimal power efficiency
Heavy-duty fabricated body for superior strength and long service life
Pillow-block bearings for added reliability and lifespan
